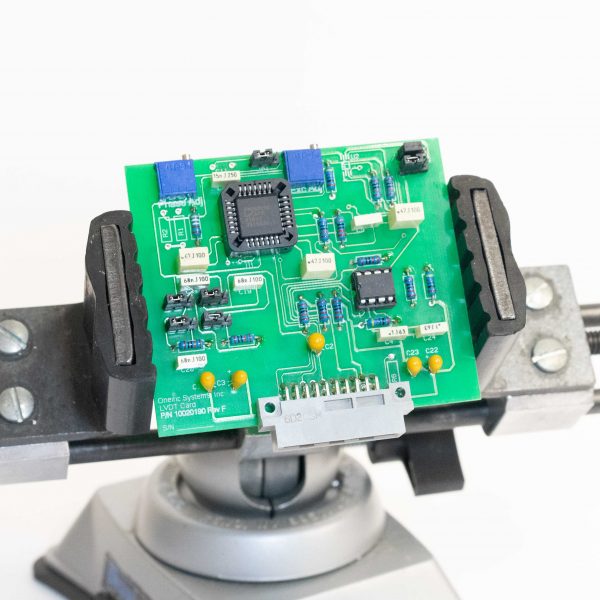

AC/AC LVDT Input Card


This product is intended to be used with a Signal Conditioning Backplane, located here. For additional information regarding this product and its variations, please see the in-depth description below.

SKU: N/A Categories: ,


Card Variations:
  • Comes with 3.50 kHz and 7.45 kHz Excitation Frequencies
    • Others can be special ordered by contacting us here
  • Optional Gains of:
    • None
    • 498.75
    • 992.56
Card Features:
  • 4 Wire LVDT Interface
    • Works with 5 & 6 wire LVDT’s with proper wiring
  • Configurable Excitation Voltage
    • 2.5V to 10V RMS
  • Linearity 0.05%
  • Output drive signal is capable of driving up to 0.5 amp (limited to 2 watts)
  • Operating Temperature Range -40°C to 85°C
Downloadable Spec Sheet
If you have any questions, comments, or concerns – or you would like a custom product – please do not hesitate to Contact Us.

Additional information

Weight 1 lbs

No Gain, Gain of 498.75, Gain of 992.56
